SPECIFICATIONS
Channels: 8 (7.1)
Hign-concerned Chemical: None
Maximum Power Per Channel: 25W
Package: Yes
semi_Choice: yes

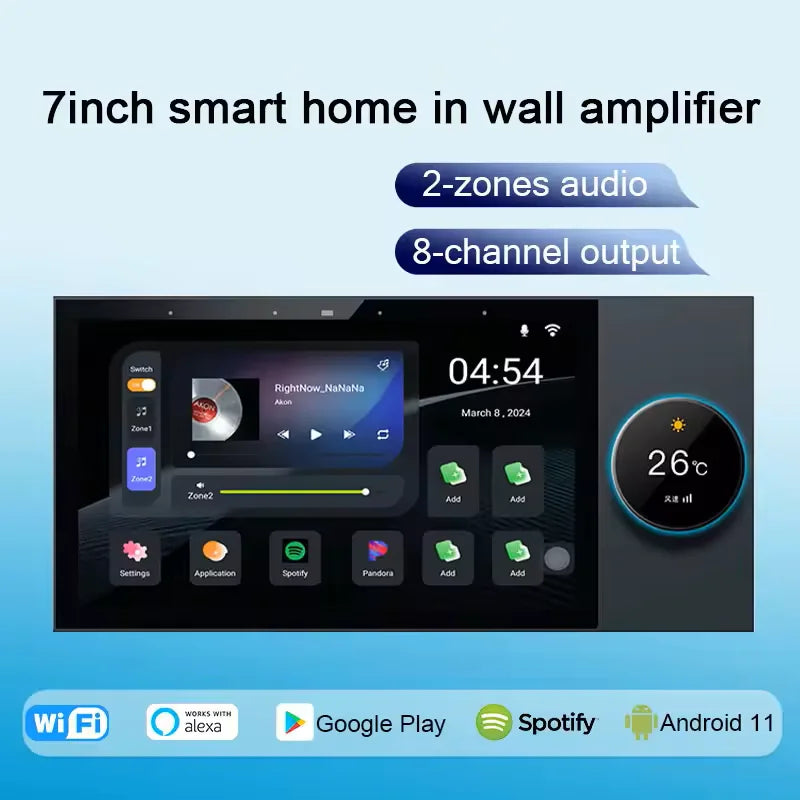

Aabout Q7- 7 inch In-Wall Intelligent Music Host
[All-in-One Control Center] Q7 Tuya smart control panel can assist you in using particular scene modes in various scenes with a single tap. Apart from the scenario-based control, it is compatible with nearly all Tuya devices and supports central control for grouped devices.
1. Support dual partition music control: 7-inch touch screen, resolution 1024 * 600, easy to operate and control
2. Music playback: support MP3, WAV, WMA, FLAC, DTS, APE, AC3, OGG and other audio formats.
3. Bluetooth: support cell phone search to connect the host to play music
4. External audio input: support for external audio sources into the machine, amplify the output
5. Support wireless microphone and family karaoke.(Optional function)
6. Time calendar: support clock, calendar display function.
8. Memory card function: external TF card, support for 32GB TF card
9. USB function: external USB card, support 32GB USB
10. Support wired network connection and WIFI connection
11. With RS485 interface
12. Suitable for family, commercial area, children's room, etc.
Q7 Tuya Smart Home Control Panel Q & A
1. What's language does this Panel support?
A2 ：Current Panel UI interface only support Englhis language, You can't setting or change to another language by yourself.
3. Can i install all kinds of Apps to be used in this panel ?
A3: Yes, you can install any other App for this panel.
Q4: What is the function of it?
A4 :The function of it is to serve as a smart home control panel.
Q5: What are the benefits of using it?
A5: The benefits of using it include wireless remote control switch, background music player, and home automation capabilities.
A6:What equipment does it support?
Q6:It supports Tuya smart device such as Scene Switches, Toggle Switch, Dimmer Switch, Sockets, Curtains, Curtain Switches,RGB Lights ,RGB Light Strip, Air Conditioner, Air Conditioner Controller Thermostat, Visual Doorbell, Camera, Doors and Windows sensor, Infrared air conditioner (Android system host), Intelligent lock (wifi).
Q7 Multi Functional intelligent Central Control Screen other function
1. Mobile APP control, voice intercom, broadcast, APP push content
2. Bluetooth playback, the host can control the Bluetooth playback device to switch music
3. Play music at regular intervals, start songs at regular intervals, and play specified music at regular intervals
4. Support external devices to control the device through 485
5. Local, TF card, U disk, Bluetooth, play music
6. 485: supports bidirectional 485 control
Support WiFi, Zigbee, 485 Smart Home Control

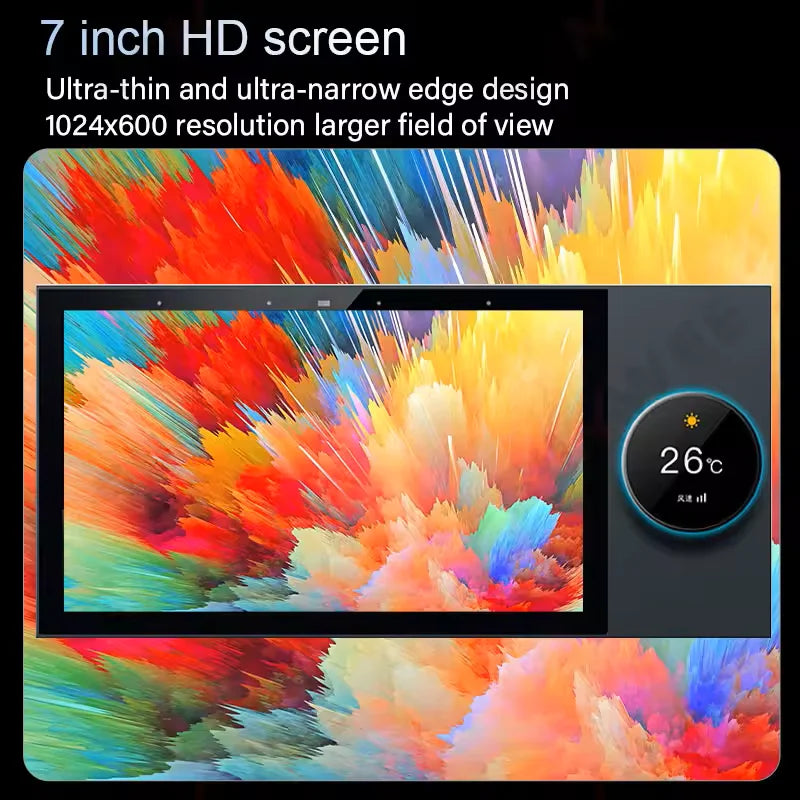

7 Inch HD Screen
Support Tuya App, One click binding of intelligent devices
Includeing all kinds of intelligent hardware
Powerfull home appliance control center
Pre-install some APP you need
Support Knob Adjustment
The air conditioning temperature, dimming, curtain opening and closing, music volume etc, can be adjusted through the knob.
Super Strong Bass Coaxial Ceiling Speaker
The surreound sound of the whole house layout forms a three-dimensional surround sound field with a sense of encircling and sock. (The ralay version panel can not connect with Coaxial ceiling Speaker)
Huge online music libray
Covers a variety of languages, styles and genres of music to meet the needs of different users.
2 Zone independent sound source
2 zone sound sources, each room play different music and volume/sound effects regulate, meet your needs.
Wireless Bluetooth audio transmission
Stable transmission, smooth playback to meet your auditory needs.
RJ45/Wireless Zigbee wifi access
With a stronger, more stable high-speed zigbee and Wifi wireless signal
Multiple audio source modes
Support wifi, Bluetooth, external audio playback U disk, TF card playback, support a variety of audio formats

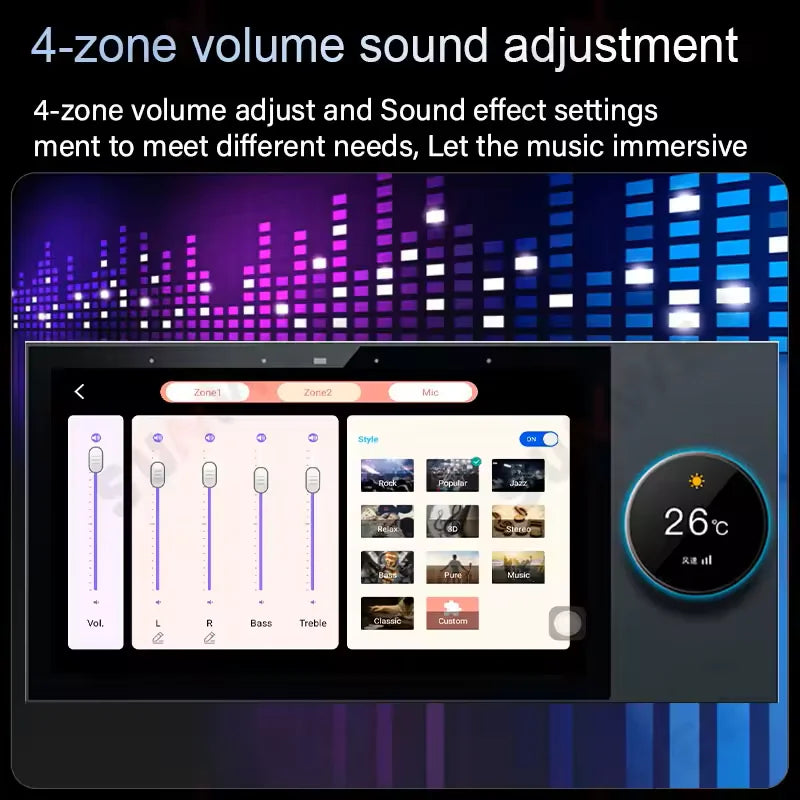

4-zone volume sound adjustment
4-zone volume adjust and sound offerct settings ment to meet different needs, Let the music immersiove
Support for TV sound input
Living room turned into a home theater
Real Time Two-way Audio
Freely customize the home screen style or wallpaper
Wiring Diagram
voice |
With recording function，Does not support voice control smart home |
||||
IOT(smart home)Optional features |
ZIBGEE gateway |
||||
TuyaIOT;Support adding control devices by scanning and binding through Tuya APP | |||||
Scene music |
Play different music according to different scene selection |
||||
Wallpaper switching |
Customised wallpaper switching, style switching |
||||
Electronic photo album |
Support local copy photo set screen as electronic photo album |
||||
Timer Play Music |
Support |
Support multi-segment timer play music, choose the right volume, music |
|||
System |
OS |
Android 11 |
|||
CPU Model |
A133 Quad-core 64-bit ARM Cortex-A53 CPU 1.6GHz |
||||
CPU Frequency |
1.6GHZ |
||||
CPU cores |
Quad-core |
||||
Screen |
Main bright screen size |
7 inches |
|||
Resolution |
1024*600 |
||||
Material |
IPS（Full Viewing Angle） |
||||
Touchscreen |
Multi-touch capacitive screen |
||||
Storage |
Body memory |
2GB |
|||
Extended TF card memory |
16GB |
||||
USB |
2.0 interface, readable 32G |
||||
Network |
Wired network port |
support 10M/100M adaptive Ethernet |
|||
WIFI |
support 802.11b/g/n wireless protocol 150Mbps 2.4GHz |
||||
Attack Amplifier Yamaha Amplifier |
Quad Volume |
Individual Volume Adjustment in Four Zones |
|||
Dichroic playback |
Two local players playing simultaneously.One zone playback: TF/Bluetooth/AUX/Spotify;Play locally in two partitions |
||||
Output Power |
8*(10-25W)（Yamaha Digital Amplifier） |
||||
Output impedance |
4-8 ohms |
||||
Total Harmonic Distortion |
0.03%（1W.1KHZ） |
||||
Frequency Response |
20Hz-20KHz |
||||
Audio Signal-to-Noise Ratio |
98db |
||||
Bluetooth |
Version |
5.0 |
|||
HDMI |
Not Supported |
||||
IOT（optional feature） |
tuya ZIGBEE;802.15.4 PHY/MAC Zigbee network stack |
||||
Lights, Outlets, Air Conditioning, Scenes, Groups, Visual Doorbell, Curtains | |||||
Audio format |
MP3，WAV,WMA,FLAC,APE,,ACC,AC3，OGG and other audio formats |
||||
Video format |
MPEG-1/2/3/4，RM/RMVB,WMV,MOV,MK,VOB,AVI,3GP,H,264 and other video formats. |
||||
Power input |
AC110-250V |
||||
Audio input |
AUX，one set |
||||
Audio Output |
one set |
||||
Appearnce view
Installation Diagram
Figure 1: three main two pieces ① background music host ② hardware hangers ③ wire box
Installation steps:
1. Pre-buried parts ③ on the wall
2. Fix the part ② on the part ③.
3. Hang the part 1 from the direction downward as shown in Figure 3 above
Packing list
1* Instruction manual, 4* screws, 1* Hardware hanger, 1 * cable box
